What parts do you need for a skeleton Seiko mod build? At minimum: an NH70 / NH71 / NH72 skeleton movement, a case and dial setup that actually shows the movement off (or skips the dial entirely), a crystal that doesn't distort the view, and a case back you can see through. Get any one of those wrong and you've spent movement money on a build that still looks like a regular Seiko mod with a hole in it.
Why skeleton builds are having a moment
Seiko modding has spent years centered on dial-and-hands builds: swap a bezel, drop in a new dial, done. The build style that's actually shifting things in 2026 goes the other direction. Instead of dressing up the outside, modders are pulling the movement itself into view, pairing the NH70 skeleton caliber with open dials and sapphire display backs so the mechanism is the design.
It's a genuine change in what a build is trying to show. A standard NH35 build hides the movement and sells you on the dial. A skeleton build sells you on the fact that there's a real mechanical watch under the glass, gears turning and all.
The movement: NH70 vs. NH71 vs NH72
They are Seiko's skeletonized automatic caliber, and functionally they're identical: 21,600 vibrations per hour, roughly 40 hours of power reserve, hacking and hand-winding. The only difference is finish. The NH70 is nickel-plated (silver-toned), the NH71 is gold-plated, and the NH72 is gun-metal grey plated. Neither one has a date function, so you're not choosing based on dial layout the way you would with an NH35 versus NH36. You're choosing based on what color plating suits the rest of your build.
One thing worth knowing before you order: because it's a specialty movement, stock runs tighter than the workhorse NH35 and NH36. The NH70 skeleton movement is worth checking before you commit to a dial and case, since building around a movement you don't actually have yet is how projects stall.
Dial and case: this is where skeleton builds actually get harder
Here's the part that trips people up. On a normal build, the dial is doing most of the visual work and the case is mostly a housing. On a skeleton build, the dial (if you use one at all) has to have real cutouts that line up with what's underneath, and the case has to be picked specifically to frame the movement rather than just fit it.
Most skeleton builds skip a traditional dial entirely and let the movement sit exposed, or use a minimal open-worked dial that frames the balance wheel without covering the gear train. If you're used to browsing dials by color and finish, this is a different kind of decision: you're now thinking about what the movement looks like through the gaps, not just what the dial looks like from the front.
That’s where our DIA106 skeleton dial with lumed minute markers or plain black DIA110 could make a difference - to hide the grey plastic movement spacer while keeping the open works visible.
Crystal
A flat or low-dome crystal reads as sharper for a skeleton build than a heavily domed one, since less curvature means less distortion when you're trying to actually see the gear train clearly. Sapphire is worth the upgrade here specifically because scratch resistance matters more on a watch where the whole point is close inspection. Mod Mode Watches' crystal lineup is sorted by profile and case fit, so match it to your case reference before ordering rather than guessing.
Case and case back
The case back is doing new work on a skeleton build: it needs to be sapphire, not solid steel, or you've hidden half the point of the movement. Beyond that, case finish matters more here than on a typical build. A heavily polished case competes with the movement for attention; a brushed or "stealth" matte finish tends to let the mechanism read as the focal point instead. Browse Mod Mode Watches' case collection with that in mind, and confirm the case back is drilled for a sapphire window before you buy.
If you'd rather start from a proven case and dial platform and swap in the skeleton movement yourself, that's also a legitimate path. The Project MM1 Pioneer Edition ships on the 28.5mm platform and is built to accept both the NH3x and NH7x movement families, so it's an option if you want fewer fitment variables while you're still learning what a skeleton build actually needs.
Is a skeleton build a good first project?
Not really, and that's not a knock on your skills. Installing the NH70 isn't harder than installing an NH35. The difficulty is upstream of the actual assembly, in the part-matching decisions: does this dial's cutout line up with this movement's balance wheel, does this crystal's curvature distort the view, does this case back actually have a sapphire window. Those are judgment calls that come easier once you've done a standard build and know what "fits" actually looks like in hand. Treat a skeleton build as your second or third project, not your first.
Skeleton build parts checklist
- NH70 or NH71 or NH72 skeleton movement, chosen by plating color (nickel vs. gold vs gun-metal)
- Open-worked or no dial, checked against the movement's cutout layout
- Flat or low-dome sapphire crystal for minimal distortion
- Sapphire exhibition case back, confirmed compatible with your case reference
- Brushed or matte case finish to let the movement be the focal point
FAQ
Do I need a special dial for a skeleton build? Not necessarily. Plenty of skeleton builds skip the dial entirely. If you do use one, it needs open cutouts that match the movement's layout rather than a standard printed face.
Is the NH70 harder to install than the NH35? No, the installation itself is the same process. What's harder is choosing dial, crystal, and case parts that actually complement an exposed movement instead of hiding it.

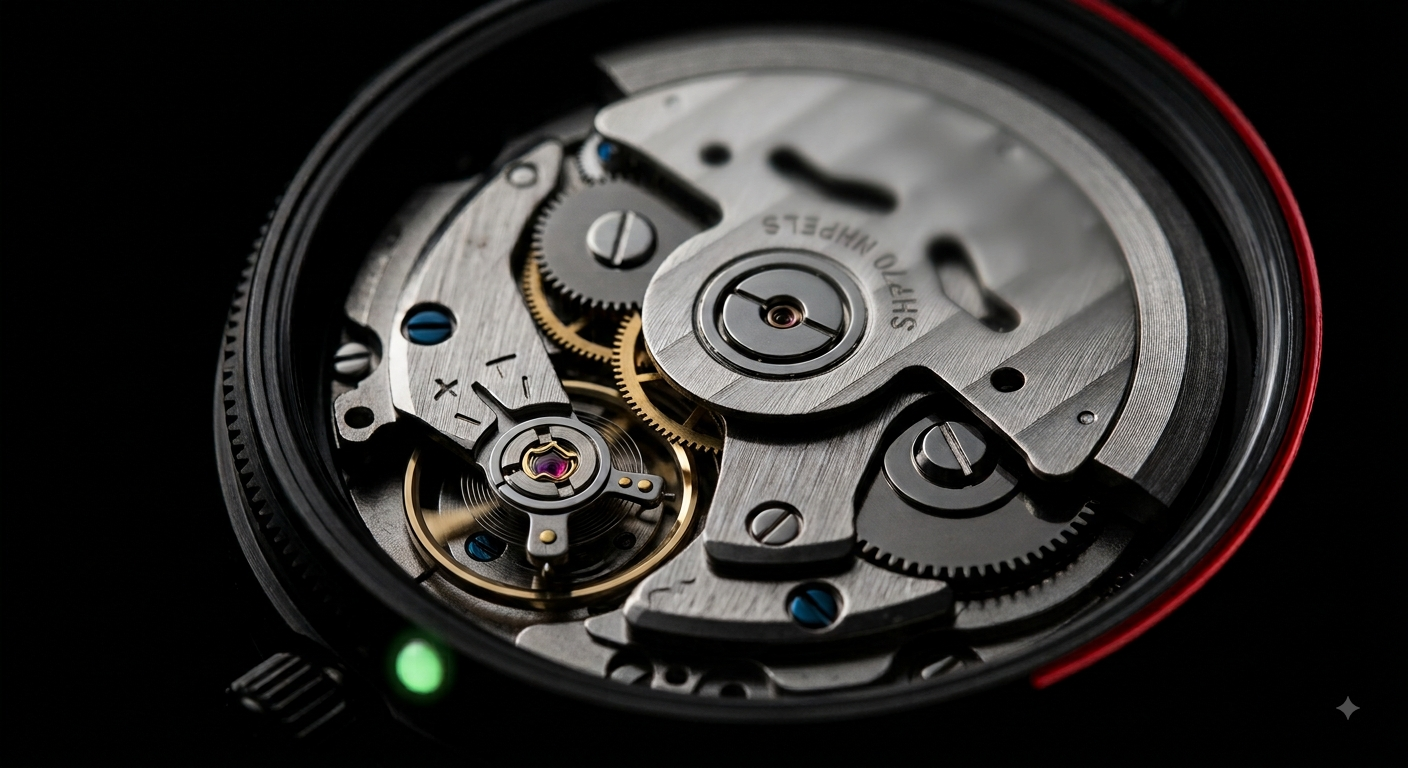

Image was generated by tools and used for the purpose of this post only. It does not reflect actual items.
