CAS009 APro Case Set with Bracelet V3.0
Now with the chapter ring ready for you to use with 28.5mm dials and the NH35 platform, taking away all the guess work!
These V3.0 cases are also available in a variety of colours.
Commonly referred to as the "seikoak" with its use of seiko movements and oak influences, this sterile steel case set comes with crystal, crown, chapter ring, exhibition case back and bracelet.
This Version 3.0 case set comes with movement spacer ready for use with movements such as the NH35 / NH36 / 4R36 / NH70 Seiko Instruments Inc movements.
The V3.0 case set also comes with a chapter ring suitable for use with 28.5mm dials.
No more filing / sanding of movement spacer needed! Each case set comes with either a plastic movement spacer or metal movement holder. Each of these works in tandem with the grey plastic spacer on your NH3x / NH7x movement.
Crown fits stems for Seiko movements too.
This case accepts 31.5-32mm dials by default. To use a 28.5mm dial, you need to use a chapter ring to compensate for the space difference.
These cases are only meant to be used with the supplied bracelet and may not work with any other brands' straps / bracelets.
Facts and Figures:
Case Diameter: 41mm
Lug to Lug: 52mm
Lug Width: 26mm
Sapphire Crystal + Gasket (installed)
Display Case Back
Case Back Gasket
Case Back Screws (8pc)
Bracelet Screws (4pc)
Movement Spacer for NH35/ NH36
Suggested method to install different sized chapter rings if using 28.5mm dial:
1) Remove the crystal carefully
2) Sand the chapter ring to fit if necessary (outer diameter)
3) Seat the chapter ring and secure with dial dots or small pieces of bezel insert tape or tiny bit of double sided tape (DO NOT USE GLUE)
4) Install crystal carefully

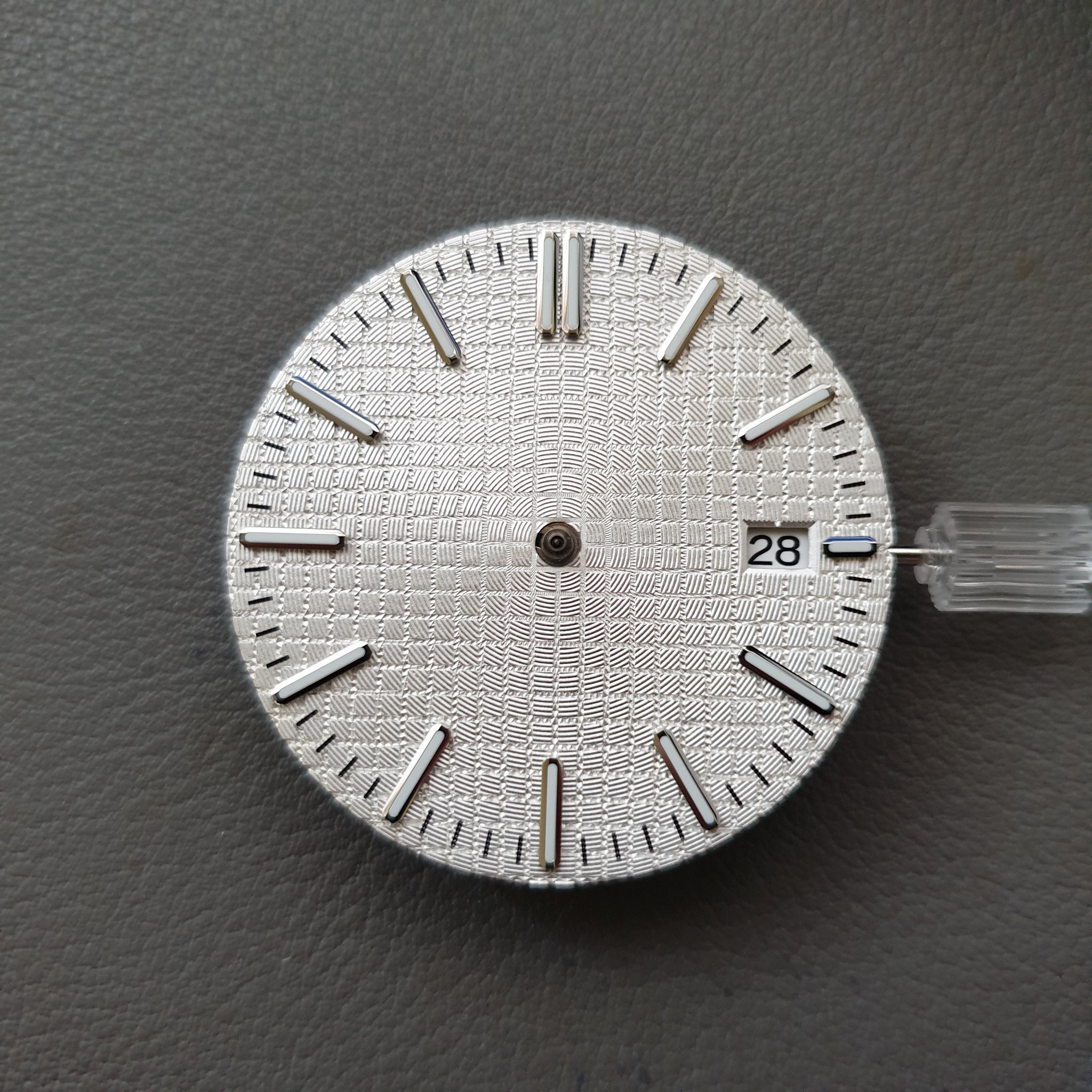

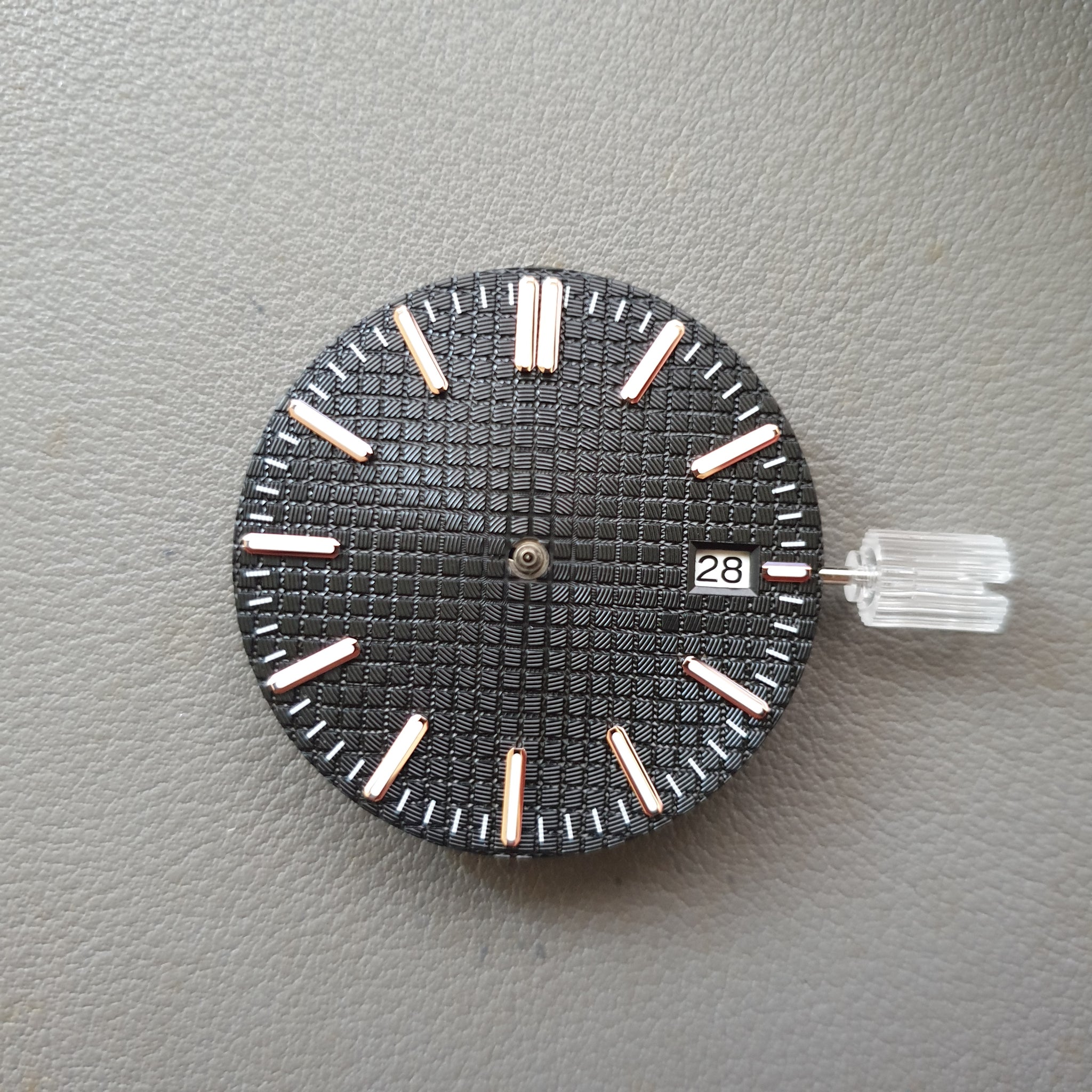

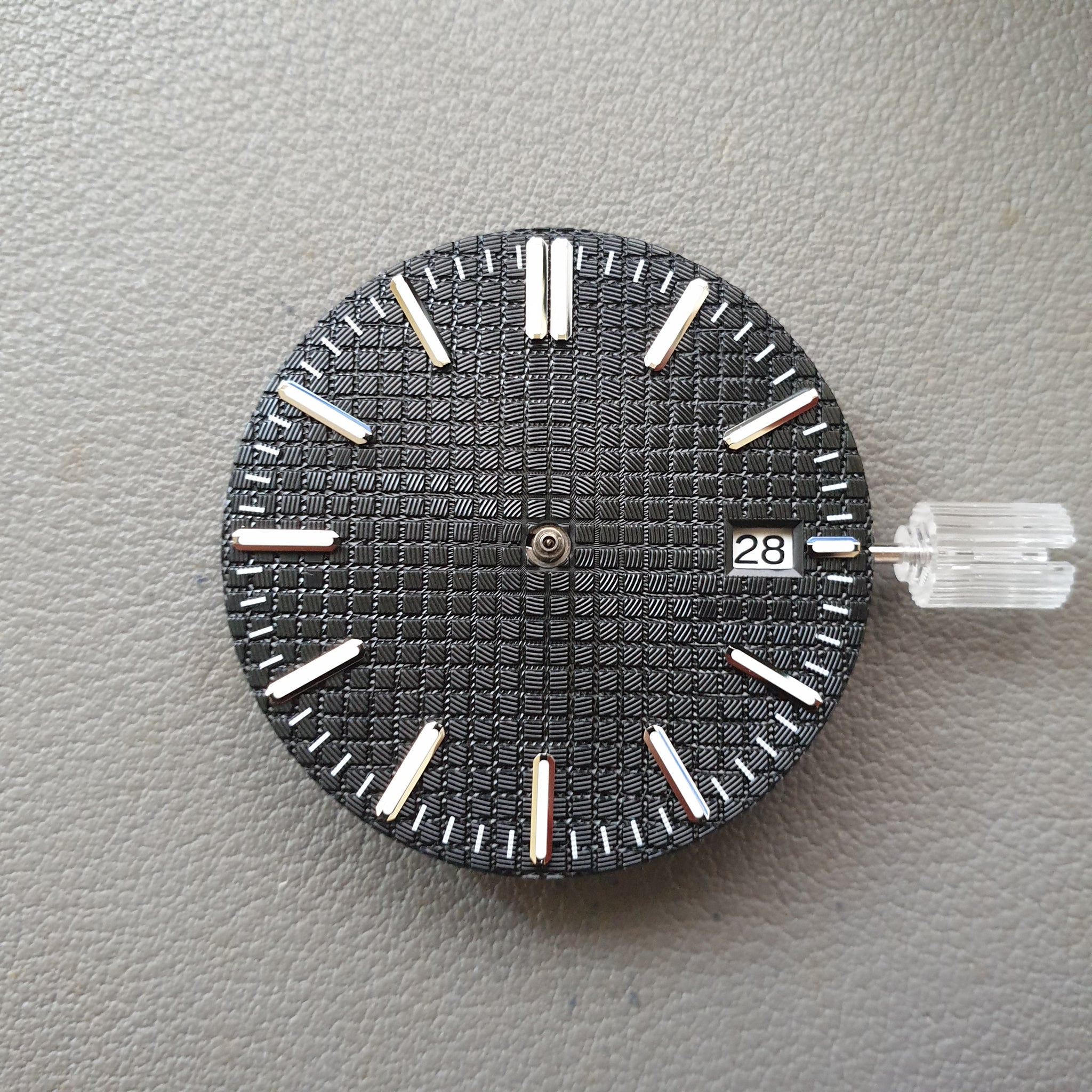

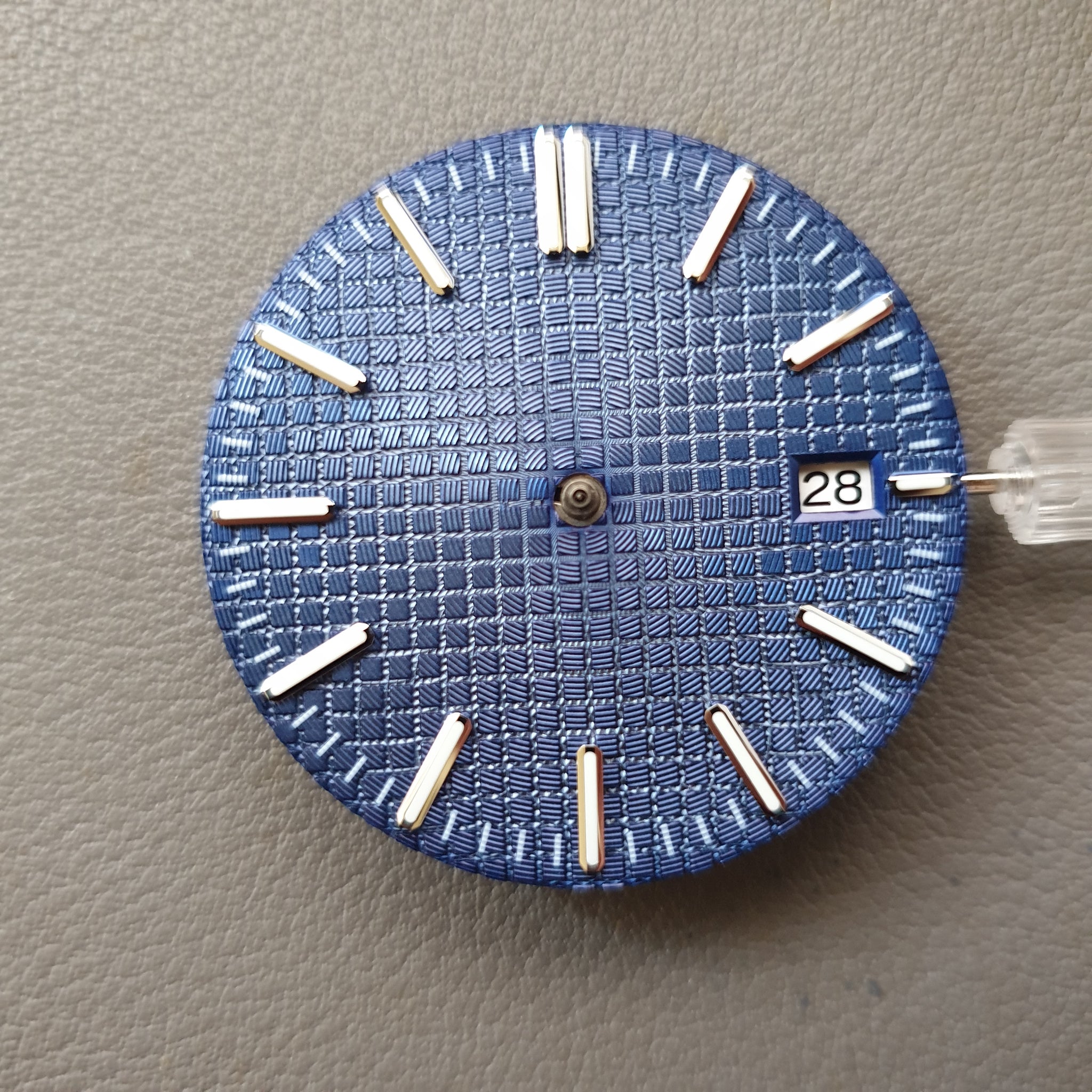

*Dial in picture is an original SPB143 dial at 28.5mm and is for illustration purposes, NOT INCLUDED with this item.
Please ask questions before purchasing if unsure about assembly process to fit Seiko Dials and Seiko Movements. All sales are final.
